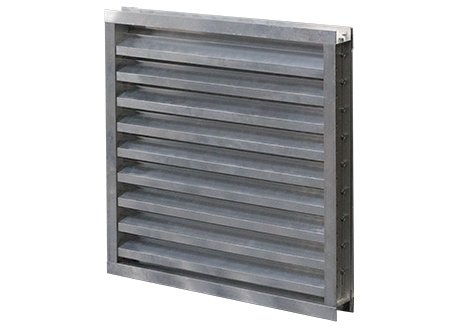

1 1/2″ Deep 30 Degree Baffle Blade, Stationary Louver
Minimum Size: | 12″ x 12″ |
Maximum Size: | 60″ x 96″ |
Frame Depth: | 1½” Deep |
Frame Material: | .063″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Material: | .063″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Orientation: | Horizontal |
Blade Type: | Baffle |
Blade Angle: | 30° |
Continuous Line: | No |
Face: | All Surfaces Flush with Jambs, in Head and Sill |
Screen Options: | Standard Bird Screen: ½” Flattened Aluminum, .051″ Thick Variety of Bird and Insect Screen Options |
Free Area: | 46% (7.37 ft2 for 48″ x 48″) |
Water Penetration: | 400 fpm |
Pressure Drop: | .10″ in. w.g. at 800 fpm and 5896 scfm |
