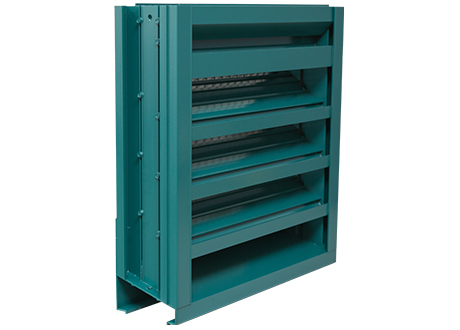

4″ Deep Extruded Aluminum High-Performance Drain Blade Louver
Model: | A4DHP |
Minimum Size: | 12″ x 12″ |
Maximum Size: | 60″ x 96″ |
Frame Depth: | 4″ Deep |
Frame Material: | .081″ or .125″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Material: | .081″ or .125″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
Blade Orientation: | Horizontal |
Blade Type: | Drainable |
Blade Angle: | N/A |
Continuous Line: | No |
Face: | Full-Width Sill; Head and Blades Contained in Jamb |
Screen Options: | Standard Bird Screen: ½” Flattened Aluminum; .051″ Thick Variety of Bird and Insect Screen Options |
Free Area: | 61% (9.63 ft2 for 48″ x 48″) |
Water Penetration: | 0.01 oz. at 909 fpm |
Pressure Drop: | .13″ in. w.g. at 1000 fpm |
AMCA: | Certified for Air Performance and Water Penetration |
