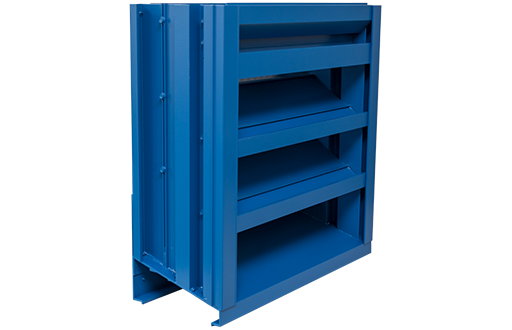

6″ Extruded Aluminum High-Performance Drain Blade Louver
| Model: | A6DHP |
| Minimum Size: | 12″ x 12″ |
| Maximum Size: | 60″ x 96″ |
| Frame Depth: | 6″ Deep |
| Frame Material: | .081″ or .125″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Material: | .081″ Thick Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Orientation: | Horizontal |
| Blade Type: | Drainable |
| Blade Angle: | N/A |
| Continuous Line: | No |
| Face: | Full-Width Sill; Head and Blades Contained in Jamb |
| Screen Options: | Standard Bird Screen: ½” Flattened Aluminum; .051″ Thick Variety of Bird and Insect Screen Options |
| Free Area: | 63% (10.06 ft2 for 48″ x 48″) |
| Water Penetration: | 0.01 oz. at 1103 fpm |
| Pressure Drop: | .13″ in. w.g. at 1000 fpm |
| AMCA: | Certified for Air Performance and Water Penetration |
