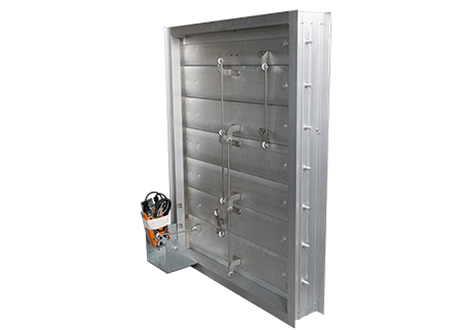

Aluminum Airfoil Damper w/ Extruded Silicone Blade and Jamb Seals
| Model: | AC-51 |
| Minimum Panel Size: | 8″ x 10⅞” |
| Maximum Panel Size: | 60″ x 96″ |
| Frame Depth: | 5″ Deep |
| Frame Type: | Channel, Hat, or Flange |
| Frame Material: | 12ga. / .080 or .125 Extruded Aluminum |
| Blade Type: | 6″ Airfoil |
| Blade Material: | 12ga. / .080 Extruded Aluminum |
| Blade Action: | Parallel |
| Shaft: | Spline (Prevents Slipping) |
| Jamb Seals: | Extruded Silicone |
| Blade Seals: | Extruded Silicone |
| Bearings: | Double Sealed |
| Linkage: | In-Jamb |
| Finish: | Mill |
| Temperature Rating: | -70°F to 200°F |
