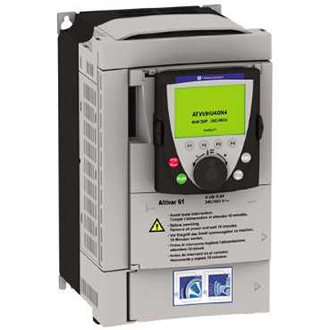

Schneider Altivar 61 Variable Speed Drive

Altivar 61 – Drives for variable torque from 0.75 to 800 kW

  • Frequency inverters for 3-phase asynchronous motors from 0.75 to 800 kW, variable torque applications 3-phases 200/240 V – 380/480 V – 500/690 V UL
  • Type 1/IP20 from 0.75 to 800 kW. UL
  • Type 12/IP54 from 0.75 to 800 kW.
  • Speed range: 1:100 in open loop mode.
  • Overload: 110% … 120% – 60 s.
  • Graphic keypad: plain text, navigation button, “Simply Start” menu to start immediately and profit at once from the full performance of Altivar 61.
  • Integrated EMC filters class A or B.
  • Energy saving law, Quadratic motor control law.
  • Conformity to the international
  • Standards and Certifications: CE, UL, CSA, C-Tick.
  • Modbus and CANopen integrated.
  • Communication cards for industry: Ethernet, FIPIO, Modus Plus, DeviceNet, Interbus-S, Unitelway and for building LonWorks, BACnet, METASYS N2 and Apogee FLN.
  • Input/output extension cards Multipump programmable cards: ATV38 compatibility and new applications.
  • More than 150 functions available. Protection of motor and drive: Safety function: “Power Removal”, ATEX. SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable SoMove Mobile software for modifying or sending a configuration remotely via mobile phone
  • Open to main building and industry communication networks.
  • Applications Range dedicated to pump and fan applications for the industry and building markets: exceptional performances, advanced functionalities.
  • High performance variable torque applications: Fan: Safety with forced function (fault inhibition, selection of operating direction and the reference speed).
  • Multipump: With the programmable card multipump, Altivar 61 offers you flexibility, user-friendliness and adaptability for management of several pumps.
  • Pumps: Essential functions for your installation protection under load, overload and fluid absence detection.
