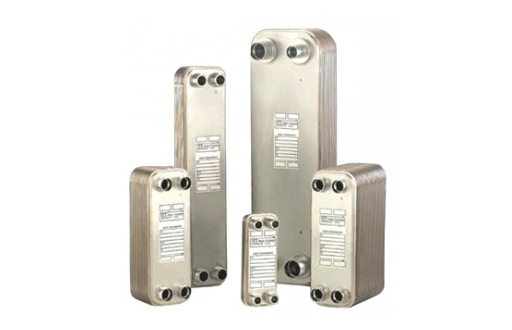

BPX™ Brazed Plate Heat Exchangers offer the highest level of thermal efficiency and durability in a compact, low-cost unit. The corrugated plate design provides very high heat transfer coefficients resulting in a more compact design. The unit’s stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature.
Compared to conventional shell and tube exchangers, the BPX™ Brazed Plate Heat Exchanger offers a more compact design.
- 1/6 the size
- 1/5 the weight
- 1/8 the liquid volume
- 1/3 to 1/5 the surface area
The BPX™ Heat Exchangers are available in many different model sizes ranging from ¼” to 4” port size and are ideal for industrial oil cooling, refrigerant evaporators and condensers, and residential and light commercial HVAC hydronic systems.
BPX™ Heat Exchangers are available with copper or optional corrosion-resistant nickel braze material. Double-wall models and ASME code options are also available.
Patent Pending BPX™ BPDW Double Wall Brazed Plate Heat Exchangers offer the highest level of leak protection, safety, thermal efficiency, and durability in a compact low-cost unit.
- True double-wall construction including port regions
- Double-wall plate design with unique air vent leak paths
- Complete peripheral braze for additional strength
- Four dedicated leak ports for quick and easy leak detection
- Excellent performance for domestic and potable water applications
