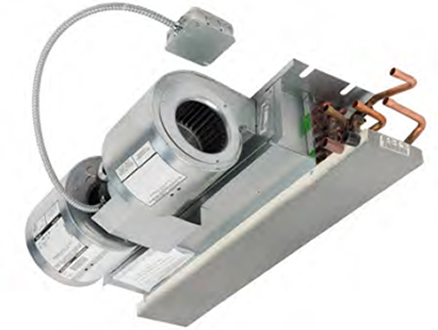

AHBC Series – hideaway ceiling model
The AHBC Series hideaway unit is designed for fully concealed installation in a furred-down ceiling space. This is an open blower type fan coil requiring a sealed return air space. Filter, return plenum, and access panel are not provided with the base unit. The space-saving AHBC is only 10” high and is designed to provide easy access for service and maintenance of the entire assembly.
ARHBC Series – recessed ceiling model
The ARHBC Series fan coil with hinged ceiling panel is designed for recessed ceiling applications.The unit consists of an AHBC fan coil totally enclosed in a cabinet with decorator style hinged access panel that also serves as a return air panel. The ceiling frame and access panel are adjustable to permit easy ﬁeld adaptation to most ceiling types for custom ﬁt and maximum accessibility to the unit and controls.
APHBC Series – hideaway model with plenum
This unit consists of an AHBC Series fan coil with factory installed return air plenum. Return air ducting can be easily attached to the unit plenum.
ACHBC Series – exposed ceiling model
The ACHBC Series fan coil is designed for installations where sufﬁcient room for ductwork isn’t available. It contains all of the features of the AHBC Series and includes a decorative cabinet with stamped discharge grille. The cabinet has an attractive baked-on light gray enamel ﬁnish. An attractive stamped return air grille in the hinged bottom panel is standard.
