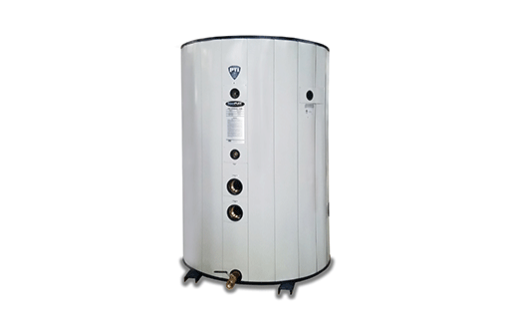

PVI Commercial Hot Water Storage Tanks

Standard tanks are available for sidearm or supplemental storage for traditional water heating systems. Specially designed tanks are now available for connection to high-temperature solar heating systems. These solar tanks include additional fittings for extra temperature sensors and connections to solar circulation loops or plate heat exchangers. The all AquaPLEX construction of the solar tanks allows storage of water up to 200°F to maximize the energy captured by the solar panels and to accelerate the return on investment in these systems.

Storage:

• Vertical orientation: 150 – 175 – 225 – 250 – 300 –
  400 – 500 – 600 – 750 – 900 – 1000 – 1250 – 1500 –
  1750 – 2000 – 2500 – 3000 – 3500 and 4000 gallons.

• Horzontal orientation: 250 – 400 – 500 – 600 – 750 –
  900 – 1000 – 1250 – 1500 – 1750 – 2000 – 2500 – 3000 –
  3500 and 4000 gallons.
