For AHU, chiller, boiler, cooling tower, and central plant applications
- 16 universal inputs including 4 for fast pulse counting and metering applications
- Expandable I/O capabilities with up to 2 ECx modules for a total of 40 inputs and 36 outputs
- Optional HOA switch with potentiometer to locally override and monitor overridden outputs
- 15 VDC power supply to power 4-20mA transducers
- 2 calendar, 10 schedule, 30 loop (PID), and over 300 BACnet objects
- Internal alarm functionality

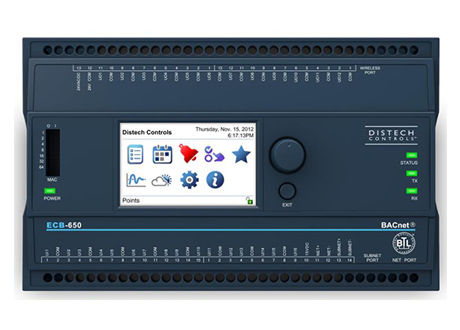

- ECB-650 includes live graphics color display (integrated LCD operator interface)
- Support up to 12 Allure series communicating sensors
- Open-to-Wireless™ Solution: support of up to 28 wireless battery-less inputs
