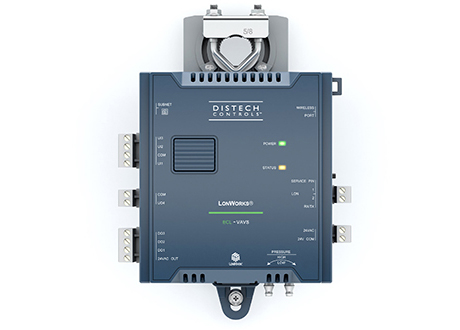

9-point controller ideally suited for cooling only and cooling with reheat VAV applications
- Robust and compact design for your VAV applications
- 3 universal inputs
- 3 digital outputs (Triac)
- 1 universal outputs
- On-board drift-free, polarity-free and NoZero calibration flow sensor reducing air flow balancing time
- Built-in brushless 45lb-in DC motor actuator with intelligent damper control algorithm for extended actuator lifecycle and fast air flow balancing
- Configure pre-loaded applications with Allure™ EC-Smart-Vue communicating sensor, EC-gfxProgram Configuration Assistant or dcgfxapplications via EC-Net.
- Create advanced sequences with EC-gfxProgram, featuring a step-by-step Configuration Assistant to facilitate custom programming, simplify onsite installation and commissioning
- Perform the entire Variable Air Volume (VAV) air balancing process via your mobile device with myDC Air Balancing
- Support of up to 4 Allure series communicating sensors
- Open-to-Wireless™ Solution: support of up to 18 wireless battery-less inputs
- LONMARK SCC VAV Certified
