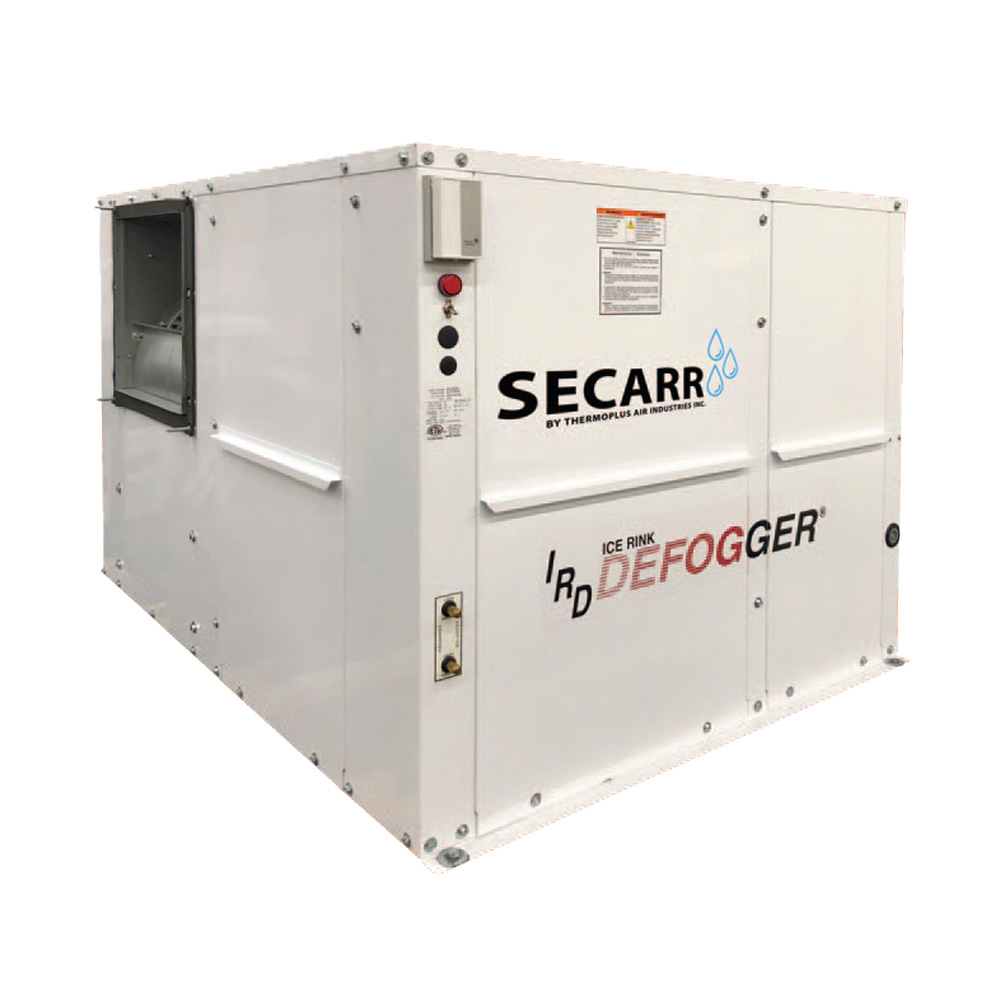

ICE RINK DEFOGGER – 6.5 LBS/HR TO 21 LBS/HR
IRD indoor packaged R448A dehumidification unit specifically designed for optimal airflow and maximum moisture removal for arenas (skating, hockey, curling)
STANDARD FEATURES
- Refrigerant components out of air stream to ease service accessibility
- Forward curve fan with adjustable pulley
- Continuous fan operation to prevent humidity build-up on off cycle
- Humidistat
- Innovative demand defrost system for quick and efficient defrost
- Heated stainless steel drain pan
- True sub-cooling circuit
- Refrigerant high and low pressure cut-out switches
- External high and low pressure service access valves and sight glass
- Thermostatic expansion valve
- Pre-painted G90 galvanized casing
- 2″ Merv 8 filter
OPTIONAL FEATURES
Aqua Aero coated coils
Non-fused disconnect
Compressor sound cover
DDC control w/humidistat
BACnet
Air supply diffuser
Plenum fan motor
OPERATING RANGE
- Entering air temperature: 34°F thru 80°F DB
- Relative humidity: 50% thru 100%
- ESP – up to 2.0″
