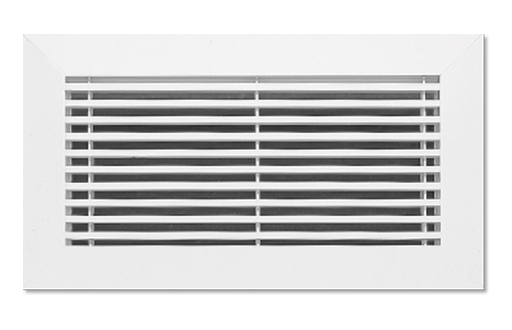

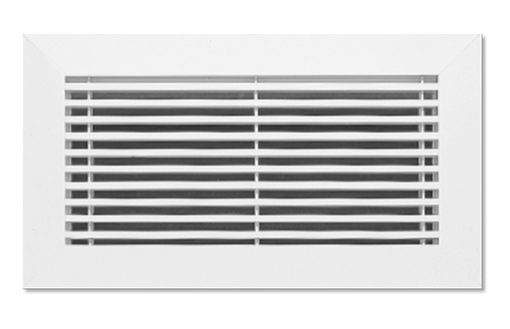

Krueger HVAC Linear Bar Grilles

1500 Series

• 7/32” Bars on 1/2” or 7/16” (Pencil Proof) Centers
• Support Bars (9” Maximum Spacing), Wall or Ceiling Mount
• Bars Set at 0°, 15°, or 30° (Pencil Proof Only) Deflection
• Extruded Aluminum Construction
• Maximum Single Section Length 72”
• Optional Access Doors, Damper, Blank Off Strips and Curving
• Miter Corner for 1500 Series (90° or 135° Included Angle)
• Standard Finish is British White

1800 Series

• 7/32” Bars on 1/2” or 7/16” (Pencil Proof) Centers
• Support Bars (6” Maximum Spacing), Floor Mount
• Bars Set at 0°, 15°, or 30° (Pencil Proof Only) Deflection
• Extruded Aluminum Construction
• Maximum Single Section Length 72” with Removable Core
• Optional Damper, Blank Off Strips and Curving
• Miter Corner for 1800 Series (90° or 135° Included Angle)
• Standard Finishes are Aluminum and British White
