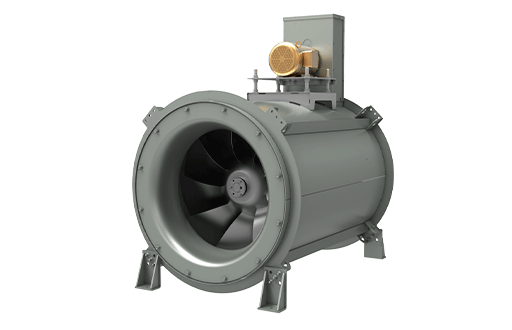

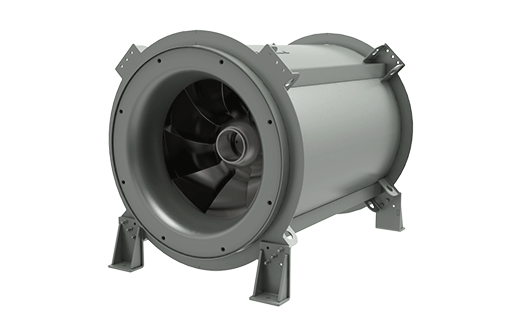

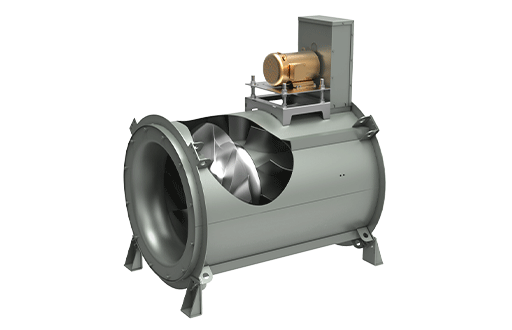

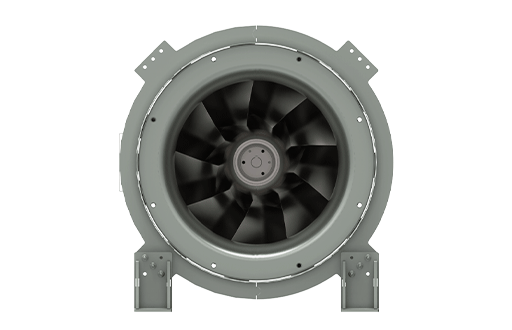

Model MXI is the most efficient tubular inline mixed-flow fan in the market. Designed to be compact and lightweight. Level 1 or level 2 construction is available. Capable of up to 8″ w.g. Available in 17 sizes ranging from 122 through 600 with a wide variety of features and options to fit a large range of applications.
- Best in class mixed flow inline fan with Standard and Airfoil Wheel
- Level 1 and Level 2 Construction available
- Heavy gauge steel, continuously welded housing
- Slip-fit Inlet and Outlet
- Performance Ranges (Min 650 CFM, Max 113,600 CFM)
- AMCA Sound and Air Performance and UL 705 Certification
- UL Heat and Smoke Option available
- UL762 Restaurant Grease Exhaust Option available
- UpBlast Configuration for Fume Exhaust
