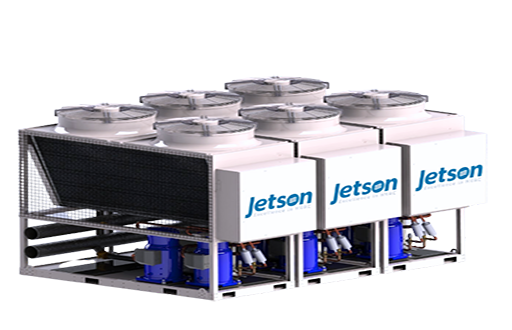

Jetson Modular Air-Cooled Chillers feature an industry leading small-footprint and modular design that makes them ideal for easy replacement, retrofit, or new construction applications. With high efficiency, EC motor driven condenser fan, and low sound fan blade design, the unit produces a very low noise level and offers increased part-load unit efficiency and superior redundancy to single machines. By adding modules to the Jetson array, modular chillers can satisfy both current and future chilled water needs.
Features & Options
- Modular capability to install up to ten (10) modules together to reach capacities up to 800 tons
- Flexible side-to-side configurations (see images) provide footprint flexibility for even challenging installations
- Compressors are factory installed on rubber isolation mounts for quiet operation
- Compressor acoustic hoods and/or sound isolating cabinets are available for sound sensitive applications
- Variable speed compressors and condenser fans
- ASHRAE 90.1 compliant
- Hydronic pump package are available skid mounted
- Reduced refrigerant charge to help earn LEED EA credit 4
- Intuitive, factory installed microprocessor-based controller compatible with BACnet®, Modbus®, and LonTalk®
- Standard uncoated or optional e-coated microchannel heat exchanger (MCHE) condenser coils
- Highly efficient, dual circuit brazed plate heat exchangers offer maximum performance at both full and part-load conditions
- Operation from -20°F to 115°F (-29°C to 49°C) ambient temperature as chiller
- Galvanized steel frame with painted finish on exterior panels minimizes corrosion and promotes long equipment life
- Integral variable speed pumps available for standalone units and pump skids for array assemblies
- R-454B available
