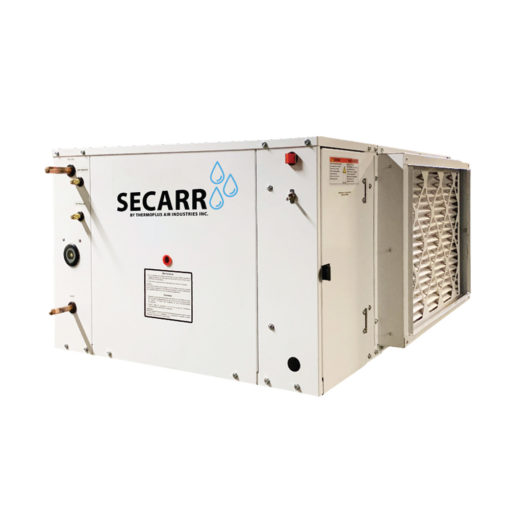

COMPACT DEHUMIDIFIER – 5.5 LBS/HR TO 26.5 LBS/HR
SDA indoor packaged R410A dehumidification unit with optional air or water-cooled air conditioning for light commercial and residential dehumidification applications (greenhouses, restaurants, warehouses, storage facilities, etc…)
STANDARD FEATURES
- EC plenum fan motor
- 24V terminal strip for thermostat connection
- Refrigerant high and low pressure cut-out switches
- Access ports on high and low sides
- Thermostatic expansion valve
- Rotary (models 012 and 016) or scroll compressor (models 024 to 060)
- Epoxy fin coils
- Pre-painted G90 galvanized casing with 1/2″ insulation .2″ Merv 8 filter
- Full reheat
OPTIONAL FEATURES
- Multi discharge options
- Aqua Aero coated coils
- Copper fin coils
- Non-fused disconnect
- Compressor sound cover
- Partial reheat
- Air or water-cooled option
- Remote air-cooled condenser
- Merv 11 or 13 filters
- Humidistat/thermostat
- DDC controls w/BACnet
- Portable Kit (models 012 and 016 only)
OPERATING RANGE
- Entering air temperature: 70°F thru 100°F DB
- Relative humidity: 40% thru 70%
- ESP – direct drive up to 0.5″
