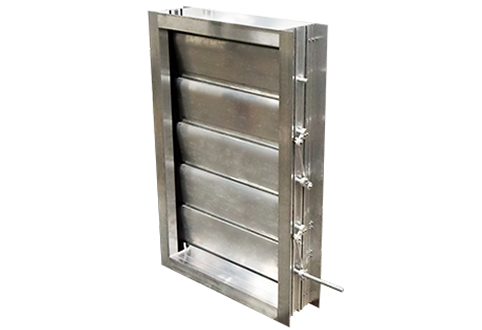

Ultra Low Leak, Insulated, Thermally Broken Control Damper w 6″ Deep Blades
Model: | TB-59 |
Minimum Size: | 8″ x 10⅞” |
Maximum Size: | 60″ x 72″ |
Frame Depth: | 6″ Deep |
Frame Type: | Thermally Broken Hat Shaped |
Frame Material: | .125 Extruded 6063-T6/T52 Aluminum; Thermally Broken in Two Location on all Sides |
Blade Type: | 6″ Wide Thermally Insulated and Thermally Broken Airfoil |
Blade Material: | 12 ga. / .080 Extruded 6063-T6/T52 Aluminum |
Blade Action: | Parallel or Opposed |
Shaft: | Spline (Prevents Slipping) |
Blade Insulation: | Two-Part High-Density Polyurethane Foam |
Frame Insulation: | Urethane Plastic |
R-Value: | 1.3 |
Jamb Seals: | Extreme Low-Temperature Polycarbonate |
Blade Seals: | Extruded Silicone |
Bearings: | Double Sealed |
Linkage: | In-Jamb Heavy Duty |
Finish: | Mill |
Temperature Rating: | -40°F to 200°F |
