Model TD/TB
Tubeaxial Fan, Direct Drive
Application
The TD and TB Tubeaxials Fan is specifically designed for cost-effective, reliable air movement in commercial and light industrial ducted and non-ducted applications. This unit is available with cast aluminum or fabricated steel propellers to meet specific application requirements.
Sizes (wheel diameters)
14 to 60 inches (355 mm to 1,524 mm)
Performance
Airflow to 82,600 CFM (140,337 m3/hour)
Static pressure to 1.5 inches w.g. (372 Pa)
Model ATAD
Axipal Tubeaxial Fan, Direct Drive
Application
The ATAD Adjustable Pitch Airfoil Tubeaxial Fan is designed for clean air applications that permit the location of the motor in the airstream. Standard fan/ motor configuration is suitable for a maximum air temperature of 104°F. Special motors are available for higher temperature applications. Please consult the factory for assistance.
Sizes (wheel diameters)
14 to 49 inches
Performance
Airflow to 75,600 CFM (128,444 m3/hour)
Static pressure to 4.5 inches w.g.(1,118 Pa)
Model ATAB
Axipal Tubeaxial Fan, Belt Driven
Application

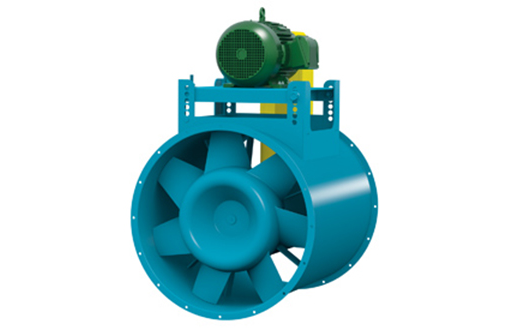

The ATAB Adjustable Pitch Airfoil Axial Fan is designed for where it is advantageous to have the motor out of the airstream due to the presence of corrosive or hazardous fumes, or dirt-laden, hot, or moist air. Standard fan configuration is suitable for a maximum temperature of 275°F.
Sizes (wheel diameters)
16 to 49 inches
Performance
Airflow to 65,100 CFM (110,604 m3/hour)
Static pressure to 2.5 inches w.g. (621 Pa)
Model TCTA
Tubeaxial Fan, Cast Aluminum Wheel
Application
The TCTA Tubeaxial Fan is ideal for installation in hospitals, schools, research labs, fume exhaust systems, and high moisture areas. Its flexibility allows the fan to be mounted as part of the ductwork, making it an ideal unit for many industrial and commercial applications.
The heart of the TCTA fan lies in its propeller. The cast of high strength aluminum alloy, the one-piece propeller has been developed to maximize the highest efficiency possible. With a wide range of hub-to-tip ratios, the TCTA can accommodate an impressive assortment of air moving requirements.
Sizes (wheel diameters)
12 to 60 inches (304 mm to 1,524 mm)
Performance
Airflow to 96,000 CFM (163,104 m3/hour)
Static pressure to 5 inches w.g. (1,243 Pa)
Model TCTS
Tubeaxial Fan, Steel Wheel
Application
The TCTS Tubeaxial Fan is designed for applications requiring extensive corrosion resistance, or operation at higher temperatures. Standard construction can accommodate operation to 200°F (93°C) and can be customized to handle up to 300°F (148°C). Steel construction is standard on this unit, and the TCTS is also available in stainless steel.
Sizes (wheel diameters)
12 to 54 inches (304 mm to 1,371 mm)
Performance
Airflow to 80,000 CFM (135,920 m3/hour)
Static pressure to 4 inches w.g. (994 Pa)
