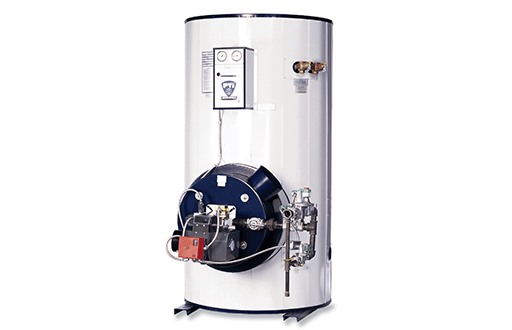

PVI Turbopower Oil and Combination Gas/Oil Supertank Water Heater

Turbopower is a fire tube, semi-instantaneous, or storage water heater featuring a two-pass, submerged heat exchanger that bolts to the tank and are completely removable; providing unequaled field accessibility and maintainability of both the exchanger and the tank.

Efficiency:

• 83% thermal efficiency.
• Meets ASHRAE 90.1-2010.
• Heaters qualify for LEED certification.

Inputs:

• Oil: 199 – 299 -399 – 500 – 600 – 800 – 1000 – 1200 – 1600 – 2000 MBtu as single exchanger heaters.

• Gas/Oil: 600 – 800 – 1000 – 1200 – 1600 – 2000 MBtu as single exchanger.

Storage:

• Vertical orientation: 150 – 175 – 215 – 225 – 250 – 300 – 400 – 500 – 600 – 750 – 900 – 1000 – 1250 – 1500 – 1750 – 2000 – 2500 – 3000 – 3500 and 4000 gallons.

• Horzontal orientation: 250 – 400 – 500 – 600 – 750 – 900 – 1000 – 1250 – 1500 – 1750 – 2000 – 2500 – 3000 – 3500 and 4000 gallons.
